Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine

Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine

Merknaam: XWH
Modelnummer: F-N-80-H, F-N-100-H, F-N-160-H, F-N-100-E, F-N-160-E
MOQ: 1 set
Prijs: $18000.00 - $20000.00
Betalingsvoorwaarden: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen: 50 sets/maand
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
CE
Naam van het product:
De longitudinale Machine van het Naadlassen
Toepassing:
Kookgereedschapswatertank Lassen
Functie:
Lasten van staal
Type:
De Machine van het tanklassen
Kenmerken:
Hoge efficiëntie
Lasmateriaal:
Het Metaal van het roestvrij staalKoolstofstaal
Na garantie service:
Videotechnische ondersteuning, Online-ondersteuning en onderdelen
Naverkoopservice:
Gratis reserveonderdelen, installatie, ingebruikname en opleiding in het veld
Certificering:
CE
Verpakking Details:
Houten behuizing
Levering vermogen:
50 sets/maand
Markeren:

Circular Side Seam Welding Machine

,

aluminium lasmachine met een lengte van meer dan 50 mm

,

Watertanks Sink Seam Welding Machine

Productbeschrijving

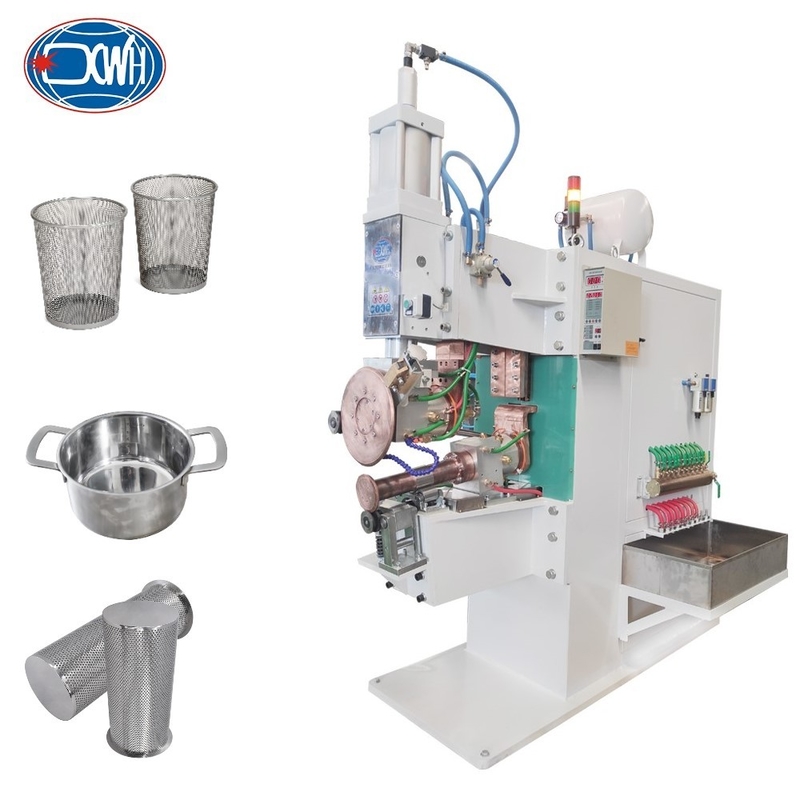

Water Tanks Sink Aluminum Longitudinal Circular Side Seam Welding Machine Price



Product Introduction:


The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.





Technical Parameters:




Model/Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





Features:



1. Rack: The rack is a vertical structure made of high-quality steel plates and sections that have been welded, heat-treated (stress relieved), and precision machined to ensure the required rigidity and accuracy during workpiece welding.

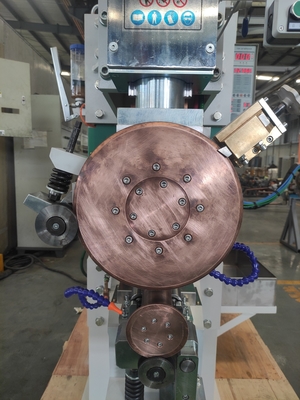

2. Rolling welding head component: The rolling welding head box is made of chrome zirconium copper casting and processing as a whole. The rotating shaft conducts electricity through contact with the silver tile, resulting in higher conductivity efficiency. Internal water cooling is used near the conductive contact area to timely remove heat and ensure conductivity and service life.



3. Pneumatic system: The solenoid valve, pressure regulating valve, air processor, etc. use branded products, and the cylinder adopts oil-free self-lubricating cylinder barrel. The equipment is equipped with a gas storage tank to stabilize the air source pressure. There is a pressure sensor at the inlet, which is monitored by PLC to prevent splashing, welding penetration, or cylinder failure during low air pressure.





General Structures:



Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 0

Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 1



Detail Images:



Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 2



Multi Types:



Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 3Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 4

Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 5Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 6





Application:



Watertanks Zink Aluminium Longitudinale Circulaire zijkant Naad Lasmachine 7



Please note: the welding machine can be custom-made according to your requirements.





Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
