CE-certificering Automatische tanksweismachine rechtstreekse longitudinale verticale naad naad lassen

CE-certificering Automatische tanksweismachine rechtstreekse longitudinale verticale naad naad lassen

Merknaam:	XWH
Modelnummer:	F-N-80-H, F-N-100-H, F-N-160-H, F-N-100-E, F-N-160-E
MOQ:	1 set
Prijs:	$18000.00 - $20000.00
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:	50 sets/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Naam van het product:

Brandstoftank lassen

Toepassing:

Waterreservoir voor het lassen van keukenartikelen

Functie:

Lassen van stalen tanks

Type:

De Machine van het tanklassen

Kenmerken:

Hoge efficiëntie

Lasmateriaal:

Het Metaal van het roestvrij staalKoolstofstaal

Na garantie service:

Videotechnische ondersteuning, Online-ondersteuning en onderdelen

Naverkoopservice:

Gratis reserveonderdelen, installatie, ingebruikname en opleiding in het veld

Certificering:

Verpakking Details:

Houten behuizing

Levering vermogen:

50 sets/maand

Markeren:

Machine voor het lassen van rechte lengte naad

CE-certificering Automatische tanksweismachine

Verticale naad lassen machine

Productbeschrijving

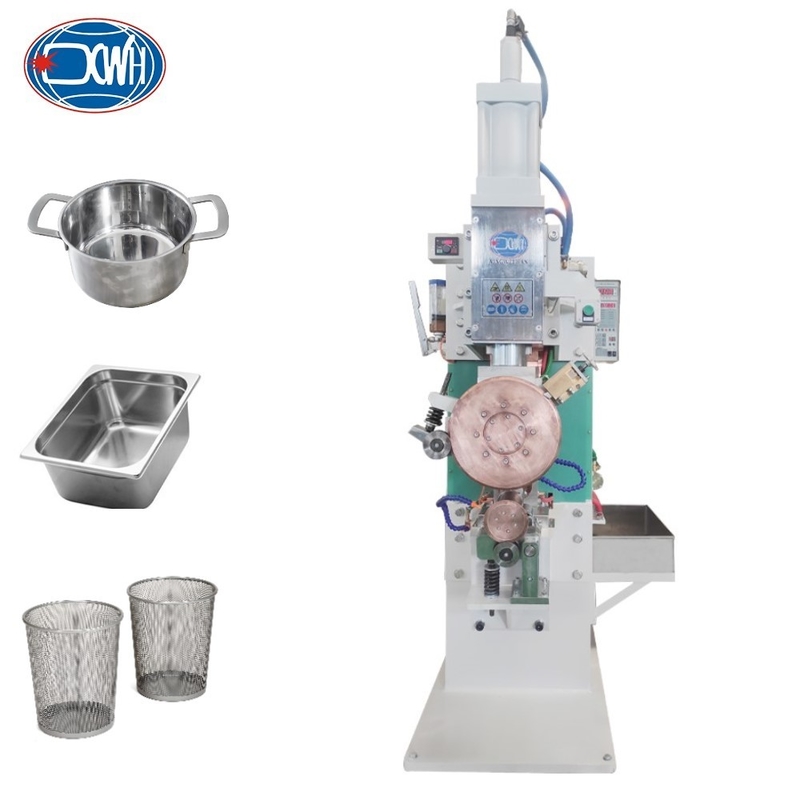

Automatic Tank Welder Straight Longitudinal Vertical Seaming Seam Welding Machine

Product Introduction:

The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.

Technical Parameters:

Model/Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Features:

1. Rack: The rack is a vertical structure made of high-quality steel plates and sections that have been welded, heat-treated (stress relieved), and precision machined to ensure the required rigidity and accuracy during workpiece welding.

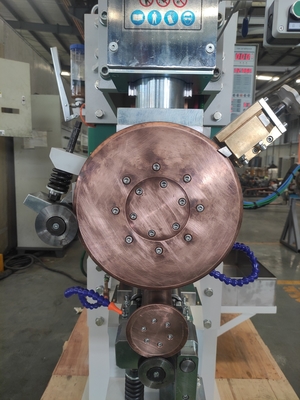

2. Rolling welding head component: The rolling welding head box is made of chrome zirconium copper casting and processing as a whole. The rotating shaft conducts electricity through contact with the silver tile, resulting in higher conductivity efficiency. Internal water cooling is used near the conductive contact area to timely remove heat and ensure conductivity and service life.

3. Water cooling circulation system: Adopting parallel grouping cooling method, the transformer, inverter system and electrode head are cooled separately, and the heat generated during the welding process is carried away in a timely manner to stabilize the quality of the welding points and extend the service life of the electrodes and related components. A flow meter, ball valve, and water filter are installed at the inlet for easy observation and replacement of spot welding electrodes. When the water flow is insufficient, an automatic alarm is triggered to ensure the normal operation of the water cooling circulation system.

General Structures:

CE-certificering Automatische tanksweismachine rechtstreekse longitudinale verticale naad naad lassen 0

CE-certificering Automatische tanksweismachine rechtstreekse longitudinale verticale naad naad lassen 1

Detail Images:

Multi Types:

Application:

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
